200 Series 2-Way Outlet Shapes
in Line
Expanded (Min) Recovered (Max) Recovered dimensions fully shrunk
Conductor size mm² HT Part NO. H H-H Matl J J-H Matl H J P ±10% R ±10% S (nom) HW ±20% W ±20%
4-35 *223-2 30.0 30.0 15.0 15.0 9.4 4.1 94.0 30.0 20.0 1.5 1.2
35-150 *218-1 50.0 50.0 21.0 21.0 22.9 7.6 119.0 34.0 30.0 3.2 3.2
300 Series 3-Way Outlet Shapes
in Line
Expanded (Min) Recovered (Max) Recovered dimensions fully shrunk
Conductor size mm² HT Part NO. H J H J S (nom) P ±10% R ±10% HW ±20% W ±20%
16-35 *319-1 31.0 15.0 17.5 4.6 23.0 93.5 28.5 2.9 2.9
50-150 *328-1 43.2 20.8 22.9 7.6 36.0 99.0 34.0 3.8 3.8
400 Series 4-Way Outlet Shapes
in Line
Expanded (Min) Recovered (Max) Recovered dimensions fully shrunk
Conductor size mm² HT Part NO. H J H J S (nom) P ±10% R ±10% HW ±20% W ±20%
16-35 *319-1 31.0 15.0 17.5 4.6 23.0 93.5 28.5 2.9 2.9
50-150 *328-1 43.2 20.8 22.9 7.6 36.0 99.0 34.0 3.8 3.8

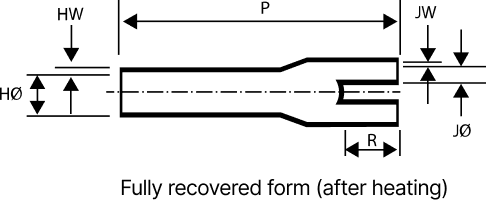

500 Series 5-Way Outlet Shapes
in Line
*6 Core Boots can be provided
Expanded (Min) Recovered (Max) Recovered dimensions fully shrunk
Conductor size mm² H H-H Matl J J-H Matl H J P ±10% R ±10% S (nom) HW ±20% W ±20%
508-1 60.0 60.0 30.0 22.5 24.5 7.5 48.0 180.0 30.0 3.5 3.0
